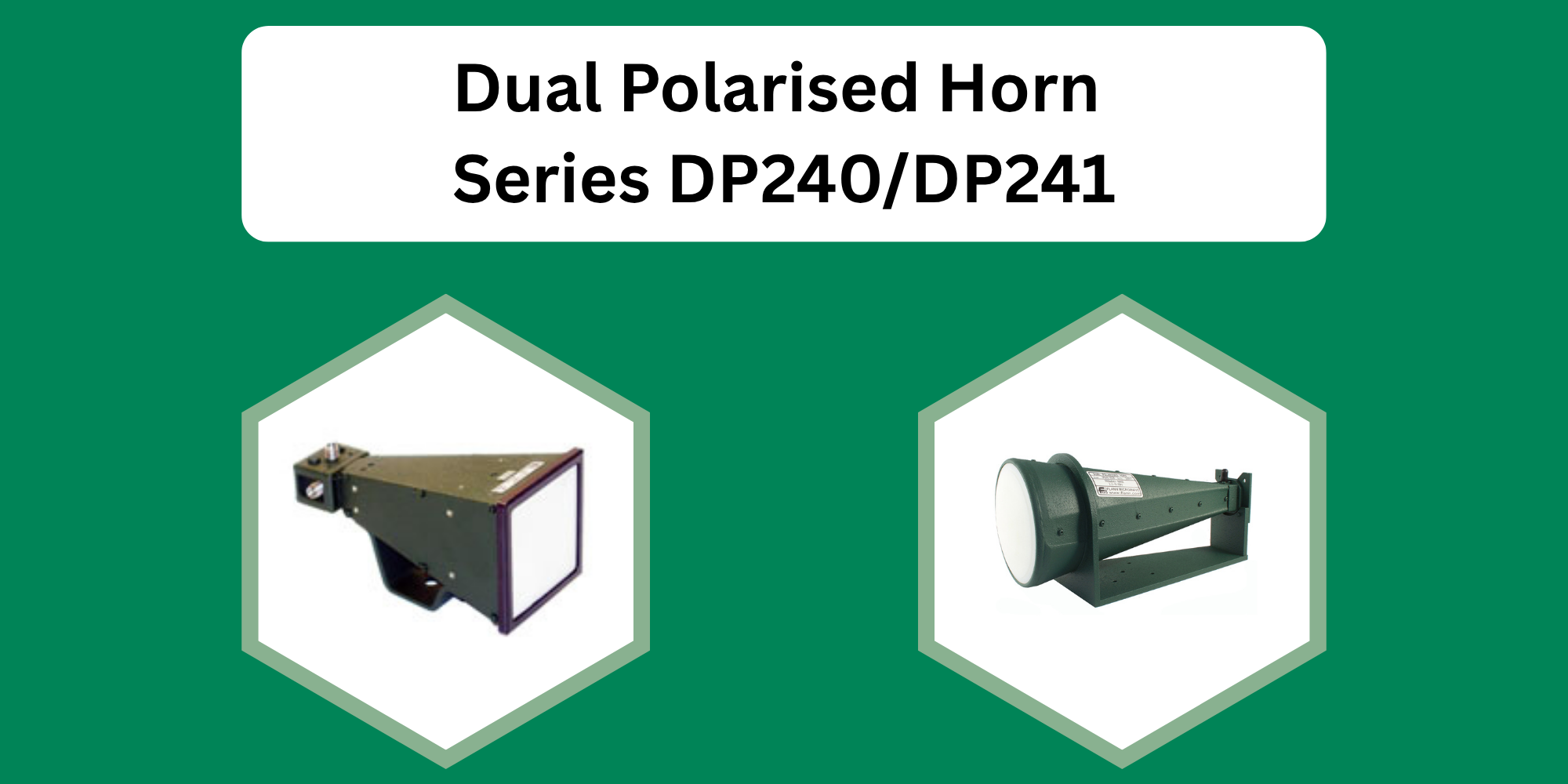

The Flann Dual Polarised Horn, Models DP240 and DP241 are multioctave, coaxially fed, quadridged horns suitable for many applications requiring a high performance over a broadband.
These high performance units covering the frequency range of 2 GHz to 50 GHz offer high isolation with low phase and amplitude imbalance between ports. The horn maintains a low VSWR while the precision electroformed construction ensures very low cross polarisation levels.
- Models available from 2 GHz to 50 GHz
- Close Phase and Amplitude tracking between ports
- High Power & Spaceflight options available
- Gain between 8 to 18dBi
- High Isolation
- Low Cross Polarisation
- Integral Mounting Bracket option
