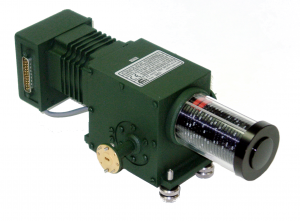

Two basic types of Programmable Rotary Vane Attenuators, Series 620 and 621, are available. The Series 620 has been extended to include models down to 3.22 GHz. The new Series 621 models offer an additional high resolution helical readout scale offering manual control.

High Speed Operation:

Programmable Rotary Vane Attenuators are fitted with a high speed drive motor capable of re positioning the attenuator from 0 dB to 60 dB (see note 1) in less than 1.1 seconds when driven by our dedicated Control Processors.

WG10 to WG29 WG30 WG31 WG32 (260-400) (325-500)

Attenuation accuracy 0 dB to 60 dB 0 dB to 50 dB 0 dB to 45 dB 0 dB to 40 dB 0 dB to 35 dB 0 dB to 30 dB

0.1 dB or 1% whichever is greater 0.15 dB or 1.2% whichever is greater 0.2 dB or 1.5% whichever is greater 0.3 dB or 2% whichever is greater 0.4 dB or 2.5% whichever is greater 0.5 dB or 3% whichever is greater

Operating temperature range: +5°C to +35°C (Refer to Flann for wider temperature range consideration)
Note 1: Customised models with extended attenuation ranges can be supplied. Please contact our Sales Team for further details.


	WG10 to WG29	WG30	WG31	WG32	(260-400)	(325-500)
Attenuation accuracy	0 dB to 60 dB	0 dB to 50 dB	0 dB to 45 dB	0 dB to 40 dB	0 dB to 35 dB	0 dB to 30 dB
0.1 dB or 1% whichever is greater	0.15 dB or 1.2% whichever is greater	0.2 dB or 1.5% whichever is greater	0.3 dB or 2% whichever is greater	0.4 dB or 2.5% whichever is greater	0.5 dB or 3% whichever is greater

Model Series
620 or 621 Frequency
Range (GHz) Waveguide VSWR
(better than) Max Insertion
Loss (dB) Max Power
(Watts)

WG WM R WR

11A620/11A621 3.22 - 4.90 11A - 40 229 1.15 0.25 10

12620/12621 3.94 - 5.99 12 - 48 187 1.15 0.25 10

13620/13621 4.64 - 7.05 13 - 58 159 1.15 0.25 9

14620/14621 5.38 - 8.18 14 - 70 137 1.15 0.25 8

15620/15621 6.58 - 10.0 15 - 84 112 1.15 0.25 6

16620/16621 8.20 - 12.5 16 - 100 90 1.15 0.25 4

17620/17621 9.84 - 15.0 17 - 120 75 1.15 0.25 3

18620/18621 11.9 - 18.0 18 - 140 62 1.15 0.3 2

19620/19621 14.5 - 22.0 19 - 180 51 1.15 0.4 1.5

20620/20621 17.6 - 26.7 20 - 220 42 1.15 0.6 1

21620/21621 21.7 - 33.0 21 - 260 34 1.15 0.8 0.75

22620/22621 26.4 - 40.1 22 - 320 28 1.15 0.9 0.5

23620/23621 33.0 - 50.1 23 - 400 22 1.15 1 0.3

24620/24621 39.3 - 59.7 24 - 500 19 1.15 1 0.25

25620/25621 49.9 - 75.8 25 - 620 15 1.15 1 0.15

26620/26621 60.5 - 92.0 26 - 740 12 1.15 1.3 0.1

27620/27621 73.8 - 112.0 27 - 900 10 1.15 1.5 0.07

28620/28621 92.3 - 140 28 - 1200 8 1.2 1.8 0.05

29620/29621 114 - 173 29 - 1400 6 1.25 2.2 0.035

30620/30621 145 - 220 30 - 1800 5 1.3 2.7 0.02

31620/31621 172 - 261 31 - 2200 4 1.4 3 0.015

32620/32621 217 - 330 32 - 2600 3 1.55 3.5 0.01

710620/710621 260 - 400 - 710 - '2.8' 1.75 4 0.007

570620/570621 330 - 500 - 570 - '2.2' 2.2 4.5 0.005

ORDERING INFORMATION


Model Series 620 or 621	Frequency Range (GHz)	Waveguide	VSWR (better than)	Max Insertion Loss (dB)	Max Power (Watts)
WG	WM	R	WR
11A620/11A621	3.22 - 4.90	11A	-	40	229	1.15	0.25	10
12620/12621	3.94 - 5.99	12	-	48	187	1.15	0.25	10
13620/13621	4.64 - 7.05	13	-	58	159	1.15	0.25	9
14620/14621	5.38 - 8.18	14	-	70	137	1.15	0.25	8
15620/15621	6.58 - 10.0	15	-	84	112	1.15	0.25	6
16620/16621	8.20 - 12.5	16	-	100	90	1.15	0.25	4
17620/17621	9.84 - 15.0	17	-	120	75	1.15	0.25	3
18620/18621	11.9 - 18.0	18	-	140	62	1.15	0.3	2
19620/19621	14.5 - 22.0	19	-	180	51	1.15	0.4	1.5
20620/20621	17.6 - 26.7	20	-	220	42	1.15	0.6	1
21620/21621	21.7 - 33.0	21	-	260	34	1.15	0.8	0.75
22620/22621	26.4 - 40.1	22	-	320	28	1.15	0.9	0.5
23620/23621	33.0 - 50.1	23	-	400	22	1.15	1	0.3
24620/24621	39.3 - 59.7	24	-	500	19	1.15	1	0.25
25620/25621	49.9 - 75.8	25	-	620	15	1.15	1	0.15
26620/26621	60.5 - 92.0	26	-	740	12	1.15	1.3	0.1
27620/27621	73.8 - 112.0	27	-	900	10	1.15	1.5	0.07
28620/28621	92.3 - 140	28	-	1200	8	1.2	1.8	0.05
29620/29621	114 - 173	29	-	1400	6	1.25	2.2	0.035
30620/30621	145 - 220	30	-	1800	5	1.3	2.7	0.02
31620/31621	172 - 261	31	-	2200	4	1.4	3	0.015
32620/32621	217 - 330	32	-	2600	3	1.55	3.5	0.01
710620/710621	260 - 400	-	710	-	'2.8'	1.75	4	0.007
570620/570621	330 - 500	-	570	-	'2.2'	2.2	4.5	0.005

Model: Description
Example: Model 19620 or 19621 Programmable Rotary Vane Attenuator
Outline dimensions available on request.

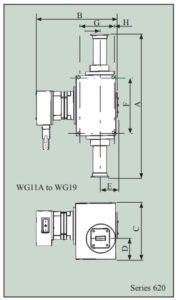

Programmable Rotary Vane Attenuators – Series 620

Model Series 620 WG 11A-WG19

Dimensions (mm)

A B C D E F G H

11A620 687 206.8 166 66 64 110 110 54

12620 560 196 155 55 63.8 110 92 51.3

13620 520 196 155 55 63.8 110 92 51.3

14620 420 196 155 55 63.8 110 92 51.3

15620 340 173 120 43 40.9 116 73 30.9

16620 300 173 120 43 40.9 116 73 30.9

17620 276 173 120 43 40.9 116 73 30.9

18620 250 173 120 43 40.9 116 73 30.9

19620 250 173 120 43 40.9 116 73 30.9

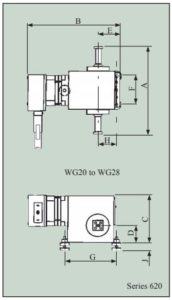

Model Series 620 WG20 - WG32

Dimensions (mm)

A B C D E F G H J

20620 250 173.5 94 35 43 95 100 37 13/21

21620 225 173.5 94 35 43 95 100 37 13/21

22620 174 173.5 95.5 35 43 56 100 37 13/21

23620 140 173.5 95.5 35 43 50 100 37 13/21

24620 134 173.5 95.5 35 43 50 100 37 13/21

25620 100 181.5 95.5 35 46.7 56 103 41.7 13/21

26620 89 181.5 95.5 35 46.7 56 103 41.7 13/21

27620 89 181.5 95.5 35 46.7 56 103 41.7 13/21

28620 89 181.5 95.5 35 46.7 56 103 41.7 13/21

29620 Dimensions available on
request

30620

31620

32620


Model	Series 620 WG 11A-WG19
Dimensions (mm)
A	B	C	D	E	F	G	H
11A620	687	206.8	166	66	64	110	110	54
12620	560	196	155	55	63.8	110	92	51.3
13620	520	196	155	55	63.8	110	92	51.3
14620	420	196	155	55	63.8	110	92	51.3
15620	340	173	120	43	40.9	116	73	30.9
16620	300	173	120	43	40.9	116	73	30.9
17620	276	173	120	43	40.9	116	73	30.9
18620	250	173	120	43	40.9	116	73	30.9
19620	250	173	120	43	40.9	116	73	30.9


Model	Series 620 WG20 - WG32
Dimensions (mm)
A	B	C	D	E	F	G	H	J
20620	250	173.5	94	35	43	95	100	37	13/21
21620	225	173.5	94	35	43	95	100	37	13/21
22620	174	173.5	95.5	35	43	56	100	37	13/21
23620	140	173.5	95.5	35	43	50	100	37	13/21
24620	134	173.5	95.5	35	43	50	100	37	13/21
25620	100	181.5	95.5	35	46.7	56	103	41.7	13/21
26620	89	181.5	95.5	35	46.7	56	103	41.7	13/21
27620	89	181.5	95.5	35	46.7	56	103	41.7	13/21
28620	89	181.5	95.5	35	46.7	56	103	41.7	13/21
29620	Dimensions available on request
30620
31620
32620

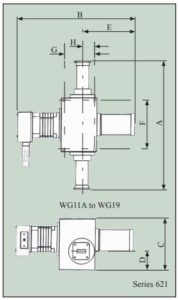

Programmable Rotary Vane Attenuators – Series 621

Series 621 WG11A -WG19

Dimensions (mm)

A B C D E F G H

11A621 687 311 166 66 148.5 110 110 54

12621 560 296 155 55 145.8 110 92 51.3

13621 520 296 155 55 145.8 110 92 51.3

14621 420 296 155 55 145.8 110 92 51.3

15621 340 273 120 43 122.9 116 73 32.9

16621 300 273 120 43 122.9 116 73 32.9

17621 276 273 120 43 122.9 116 73 32.9

18621 250 273 120 43 122.9 116 73 32.9

19621 250 273 120 43 122.9 116 73 32.9

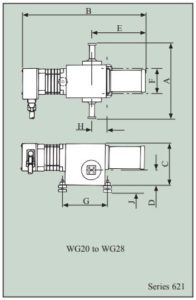

Model Series 621 WG20 -WG32

Dimensions (mm)

A B C D E F G H J

20621 250 273.5 95.5 35 118.7 95 100 37 13/21

21621 225 273.5 95.5 35 118.7 95 100 37 13/21

22621 174 274.5 95.5 35 118.7 56 100 37 13/21

23621 140 274.5 95.5 35 118.7 50 100 37 13/21

24621 134 274.5 95.5 35 118.7 50 100 37 13/21

25621 100 281.5 95.5 35 125.7 56 103 41.7 13/21

26621 89 281.5 95.5 35 125.7 56 103 41.7 13/21

27621 89 281.5 95.5 35 125.7 56 103 41.7 13/21

28621 89 281.5 95.5 35 125.7 56 103 41.7 13/21

29621 Dimensions available on
request

30621
31621

32621
