Features

Low VSWR
Models from 1.14 GHz to 500 GHz

Flann series 040, precision – low power terminations have a very low VSWR which makes them eminently suitable for use in VSWR measurements.

Model Frequency
Range (GHz) Waveguide VSWR

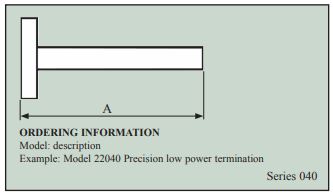

(better than) Max Mean CW Power (Watts) Dimension A
(mm) Weight
(kg)

WG WM R WR

06040 1.14 - 1.73 6 - 14 650 1.01 6 600

08040 1.72 - 2.61 8 - 22 430 1.01 6 450 On Request

09A040 2.17 - 3.3 9A - 26 340 1.01 5

10040 2.60 - 3.95 10 - 32 284 1.01 5 330 3.2

11A040 3.22 - 4.90 11A - 40 229 1.01 6 347 1.65

12040 3.94 - 5.99 12 - 48 187 1.01 5 302 1.25

13040 4.64 - 7.05 13 - 58 159 1.01 4 282 1.15

14040 5.38 - 8.18 14 - 70 137 1.01 3 252 1

15040 6.58 - 10.0 15 - 84 112 1.01 2 202 0.75

16040 8.20 - 12.5 16 - 100 90 1.015 1 192 0.45

17040 9.84 - 15.0 17 - 120 75 1.015 0.75 152 0.26

18040 11.9 - 18.0 18 - 140 62 1.02 0.75 132 0.18

19040 14.5 - 22.0 19 - 180 51 1.02 0.75 112 0.13

20040 17.6 - 26.7 20 - 220 42 1.02 0.75 82 0.08

21040 21.7 - 33.0 21 - 260 34 1.02 0.75 78 0.07

22040 26.4 - 40.1 22 - 320 28 1.02 0.5 78 0.05

23040 33.0 - 50.1 23 - 400 22 1.02 0.5 66 0.04

24040 39.3 - 59.7 24 - 500 19 1.025 0.5 52 0.03

25040 49.9 - 75.8 25 - 620 15 1.025 0.4 42 0.03

26040 60.5 - 92.0 26 - 740 12 1.035 0.4 35 0.02

27040 73.8 - 112 27 - 900 10 1.035 0.3 30 0.015

28040 92.3 - 140 28 - 1200 8 1.045 0.2 25 0.015

29040 114 - 173 29 - 1400 6 1.05 0.15 20 0.015

30040 145 - 220 30 - 1800 5 1.06 0.12 28 0.015

31040 172 - 261 31 - 2200 4 1.08 0.1 20 0.015

32040 217 - 330 32 - 2600 3 1.1 0.08 20 0.015

710040 260 - 400 - 710 - '2.8' 1.12 0.07 On Request

570040 330 - 500 - 570 - '2.2' 1.15 0.05

470040 On Request - 470 - Details Available upon Request

380040 - 380 -

310040 - 310 -

250040 - 250 -


Model	Frequency Range (GHz)	Waveguide	VSWR (better than)	Max Mean CW Power (Watts)	Dimension A (mm)	Weight (kg)
WG	WM	R	WR
06040	1.14 - 1.73	6	-	14	650	1.01	6	600
08040	1.72 - 2.61	8	-	22	430	1.01	6	450	On Request
09A040	2.17 - 3.3	9A	-	26	340	1.01	5
10040	2.60 - 3.95	10	-	32	284	1.01	5	330	3.2
11A040	3.22 - 4.90	11A	-	40	229	1.01	6	347	1.65
12040	3.94 - 5.99	12	-	48	187	1.01	5	302	1.25
13040	4.64 - 7.05	13	-	58	159	1.01	4	282	1.15
14040	5.38 - 8.18	14	-	70	137	1.01	3	252	1
15040	6.58 - 10.0	15	-	84	112	1.01	2	202	0.75
16040	8.20 - 12.5	16	-	100	90	1.015	1	192	0.45
17040	9.84 - 15.0	17	-	120	75	1.015	0.75	152	0.26
18040	11.9 - 18.0	18	-	140	62	1.02	0.75	132	0.18
19040	14.5 - 22.0	19	-	180	51	1.02	0.75	112	0.13
20040	17.6 - 26.7	20	-	220	42	1.02	0.75	82	0.08
21040	21.7 - 33.0	21	-	260	34	1.02	0.75	78	0.07
22040	26.4 - 40.1	22	-	320	28	1.02	0.5	78	0.05
23040	33.0 - 50.1	23	-	400	22	1.02	0.5	66	0.04
24040	39.3 - 59.7	24	-	500	19	1.025	0.5	52	0.03
25040	49.9 - 75.8	25	-	620	15	1.025	0.4	42	0.03
26040	60.5 - 92.0	26	-	740	12	1.035	0.4	35	0.02
27040	73.8 - 112	27	-	900	10	1.035	0.3	30	0.015
28040	92.3 - 140	28	-	1200	8	1.045	0.2	25	0.015
29040	114 - 173	29	-	1400	6	1.05	0.15	20	0.015
30040	145 - 220	30	-	1800	5	1.06	0.12	28	0.015
31040	172 - 261	31	-	2200	4	1.08	0.1	20	0.015
32040	217 - 330	32	-	2600	3	1.1	0.08	20	0.015
710040	260 - 400	-	710	-	'2.8'	1.12	0.07	On Request
570040	330 - 500	-	570	-	'2.2'	1.15	0.05
470040	On Request	-	470	-	Details Available upon Request
380040	-	380	-
310040	-	310	-
250040	-	250	-


Model Number	Waveguide	VSWR (max)	Maximum Power (W)
WRD200040	WRD200	1.02	5
WRD250040	WRD250	1.02	2
WRD350040	WRD350	1.02	1.5
WRD475040	WRD475	1.03	1
WRD500040	WRD500	Details upon request
WRD580040	WRD580	1.03	1
WRD650040	WRD650	1.03	1
WRD750040	WRD750	1.02	1
WRD110040	WRD110	1.04	0.75
WRD180040	WRD180	1.04	0.5

404 Not Found

Precision Low Power Terminations Series 040
